🚀 Elevate your embedded projects with pro-level speed and flexibility!

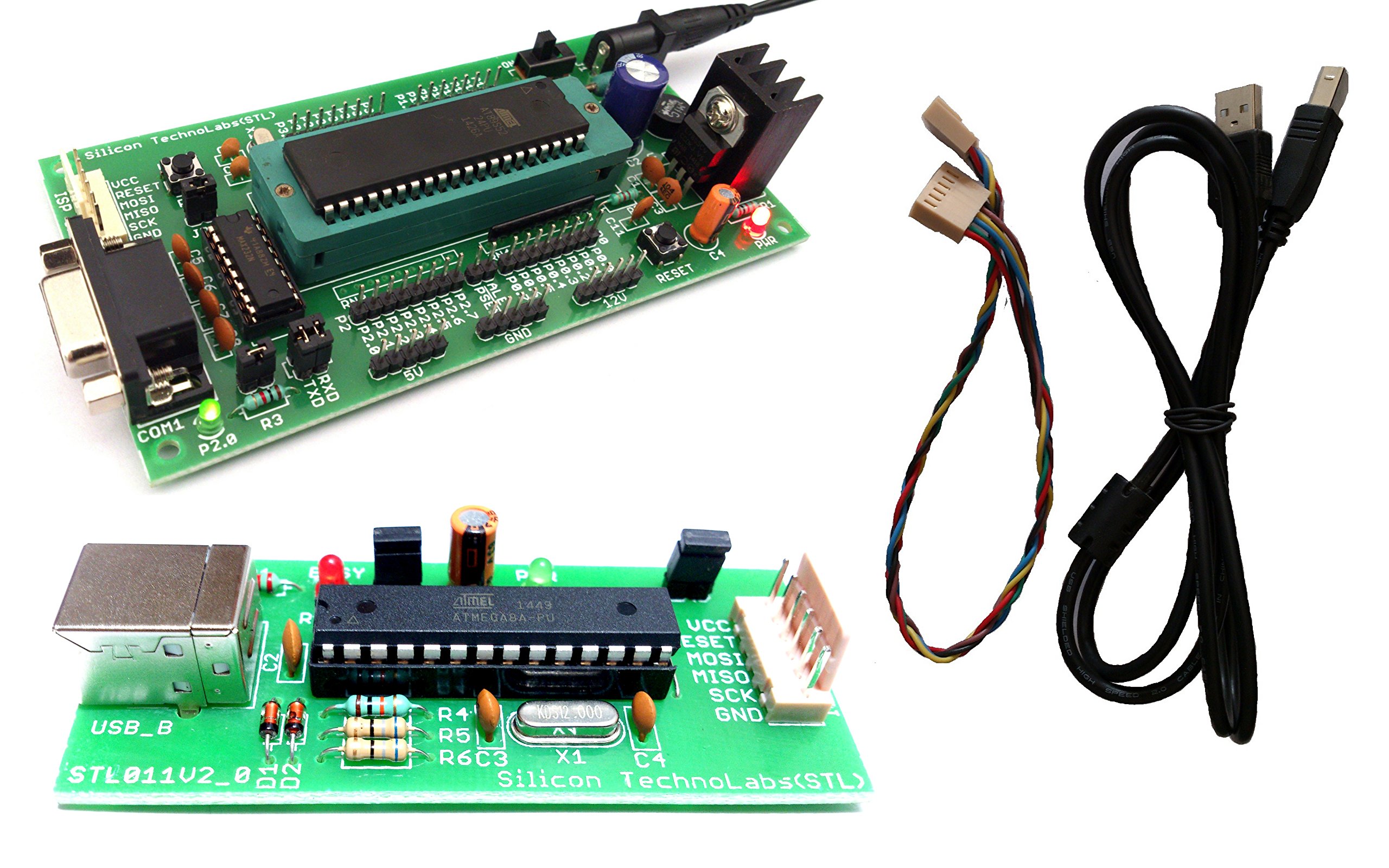

The ATMEL 8051 Development Board Programmer Kit features a user-friendly ZIF socket, onboard MAX232 for RS232 communication, and a stable LM7805 power regulator. Compatible with a wide range of AT89Sxx and AVR microcontrollers, it supports cross-platform USB ISP programming at speeds up to 5KB/sec. Designed with a durable FR4 PCB and multiple power options, this kit is ideal for professional developers and hobbyists aiming for rapid prototyping and reliable embedded system development.
| Brand | Silicon TechnoLabs |
| Manufacturer | Silicon TechnoLabs |
| Model | STL010V2.0ZIF _STL011V2.1 |
| Package Dimensions | 17.7 x 10.2 x 7 cm; 190 g |
| Item model number | STL010V2.0ZIF _STL011V2.1 |
| Operating System | Windows Phone |
| Processor Brand | Atmel |
| Processor Speed | 1.5 GHz |
| Compatible Devices | Development board support AT89S51,AT89S52,P89V51RD2,SST89E516RD2,etc., Programmer support ATmega Series ATmega8 ATmega8A ATmega48 ATmega48A ATmega48P ATmega48PA ATmega88 ATmega88A ATmega88P ATmega88PA ATmega168 ATmega168A ATmega168P ATmega168PA ATmega328 ATmega328P ATmega103 ATmega128 ATmega128P ATmega1280 ATmega1281 ATmega16 ATmega16A ATmega161 ATmega162 ATmega163 ATmega164 ATmega164A ATmega164P ATmega164PA ATmega169 ATmega169A ATmega169P ATmega169PA ATmega2560 ATmega2561 ATmega32 ATmega32A ATmega324 ATmega324A ATmega324P ATmega324PA ATmega329 ATmega329A ATmega329P ATmega329PA ATmega3290 ATmega3290A ATmega3290P ATmega64 ATmega64A ATmega640 ATmega644 ATmega644A ATmega644P ATmega644PA ATmega649 ATmega649A ATmega649P ATmega6490 ATmega6490A ATmega6490P ATmega8515 ATmega8535, Tiny Series ATtiny12 ATtiny13 ATtiny13A ATtiny15 ATtiny25 ATtiny26 ATtiny45 ATtiny85 ATtiny2313 ATtiny2313A Classic Series AT90S1200 AT90S2313 AT90S2333 AT90S2343 AT90S4414 AT90S4433 AT90S4434 AT90S8515 AT90S8535 CAN Series AT90CAN128 PWM Series AT90PWM2 AT90PWM3 AT89Sxx Series AT89S51 AT89S52 AT89S53 AT89S8252 AT89S8253 |
| Special Features | 8051 Development Board:-On-board bridge rectifier enables the board to accept both AC and DC Input voltages|Recommended Input Voltage: 9-12V.Min-Max Input Voltage: 9-18V|5 mm standard DC plug-in jack for power supply|On-board 5V regulator (LM7805) circuit.On-Board power supply on-off switch.Power Status LED(RED)|User LED(GREEN) connected to P2.0 through jumper JP3.|User Switch connected to P3.7 through jumper JP2.|On-board 11.0592 MHz crystal.External pull-up resistors for Port 0|, Port extensions for all ports with detailed pin labelling for easy identification of pins|On-board MAX232 interface circuit for easy communication with a computer and other serial devices (GPS modules, GSM Modems, etc) also for loading hex file into P89V51RD2|On-board ISP connector for loading HEX file into AT89S51/52.|12V, 5V and GND bus provided for external peripheral.|High quality FR-4(1.6 mm) PCB|, Software, USB Driver & Sample code :- https://goo.gl/uhpfyk Youtube Videos tutorial :- https://goo.gl/GgYu5t |

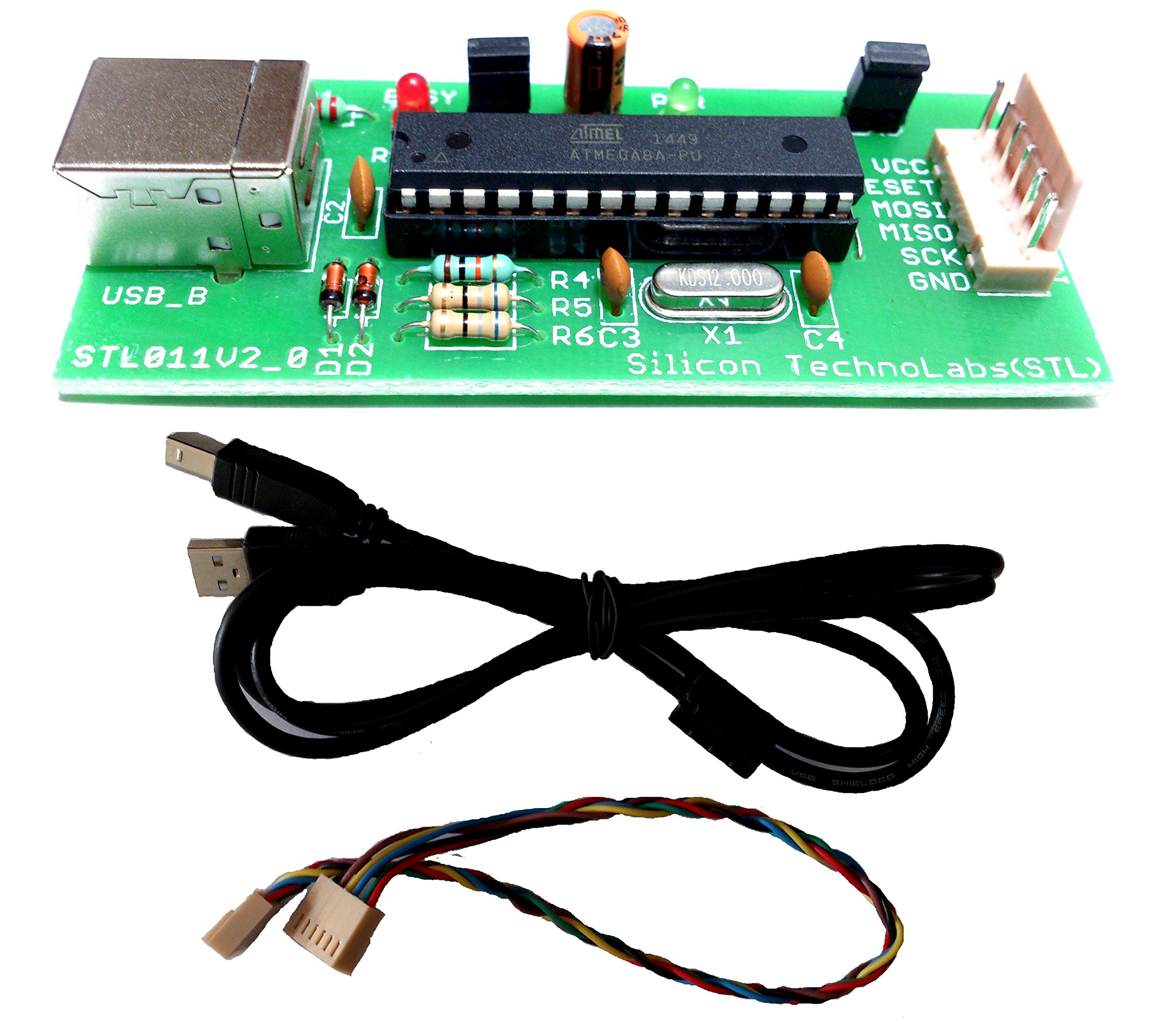

| Mounting Hardware | (1).ATMEL 8051 Project Development Board with ZIF Socket AT89S52,MAX232, (2).8051 & AVR USB ISP Programmer, (3).USB A to USB B cable. (4)6 Pin Cable |
| Voltage | 5 Volts |
| Power Source | USB - DC |
| Batteries Included | No |
| Batteries Required | No |
| Write Speed | 5 KB/sec Maximum Write Speed |
| Speed Rating | For AT89S52 (Up to 33 MHz) On Board 11.0592 MHz |
| Number of Ports | 4 |
| Communication Interface | Cable |
| Input Type | 4 x General Purpos IO PORT,1x Serial RS232 DB9 PORT,1 x User Switch(P3.7) | USB |
| Connector Type | USB |
| Movement Detection Technology | Using PIR Motion Sensor |
| Has Auto Focus | No |
| Programmable Buttons | No |
| Manufacturer | Silicon TechnoLabs |
| Country of Origin | India |
| Item Weight | 190 g |
K**E
Awesome quality
Good quality 👍
A**R
Good Quality, Good product if it is working
Quality is good. ZIF socket has its advantages go for this version. But unfortunately my board is not working. This also need to be taken care by the manufacturer even though stickers are there showing Ok Tested, not trustable.
A**R
Good product
Working nice
S**A
Very nice pcb quality awesome Development board
This Devlopment board quality is very nice i like pcb quality which is pretty Good thanks to silicontechnolabs and amazon delivery service
A**R
I received Defective kit
The programmer works well n quality of PCB is good but unfortunately I received defective kit .
V**S
Three Stars
Quite annoying to find usb isp drivers but once done it is easy to learn programming mp
D**A
Good product & it is work properly Thanks to silicon
Good product & it is work properlyThanks to silicon technolabs
H**K
... to siliconlabs and Amazon for giving me such an amazing product. Works fine
Thanks to siliconlabs and Amazon for giving me such an amazing product. Works fine.
